| Název | Popis | Hodnota |
|---|---|---|

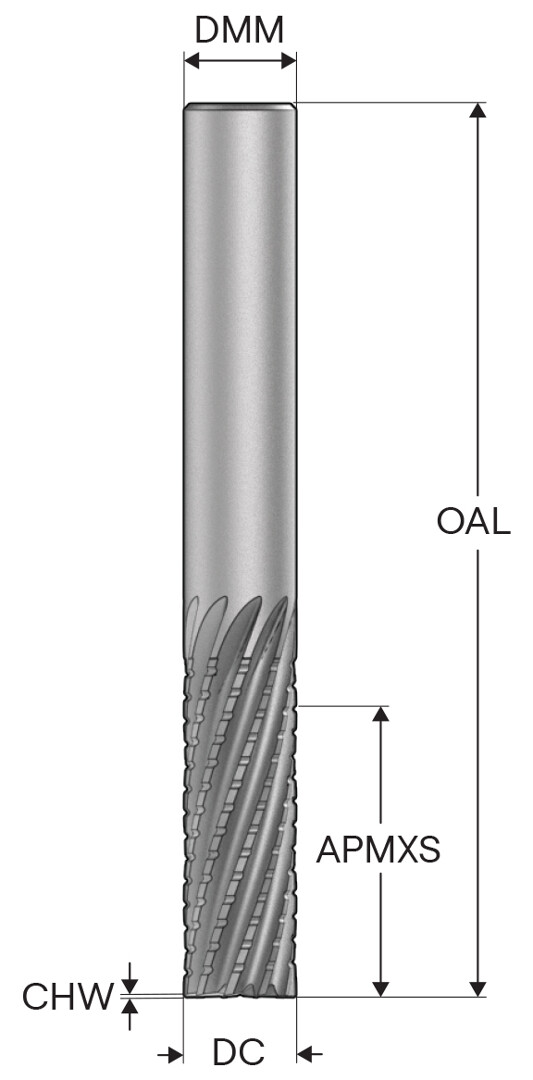

| APMX | depth of cut maximum | 24.0 mm |
| APMXE | depth of cut maximum in feed direction end | 1.6 mm |
| APMXS | depth of cut maximum in feed direction side | 24.0 mm |
| CCC | center cutting capability | 0 |
| CEDC | Počet břitů | 10 |
| CGT | cutting geometry type | JC875 |
| CGTT | cutting geometry type technical | JC875 |
| CHW | corner chamfer width | 0.08 mm |
| CHWTOLL | corner chamfer width lower tolerance | -0.05 mm |
| CHWTOLU | corner chamfer width upper tolerance | 0.05 mm |
| Cmax | helical interpolation hole diameter maximum | 16.0 mm |
| Cmin | helical interpolation hole diameter minimum | 10.4 mm |
| COATING | cutting item coating | DURA |
| DC | cutting diameter | 8.0 mm |
| DC1 | Obráběcí průměr | 8.0 mm |
| DCTOLL | lower cutting diameter tolerance | -0.08 mm |
| DCTOLU | upper cutting diameter tolerance | -0.02 mm |

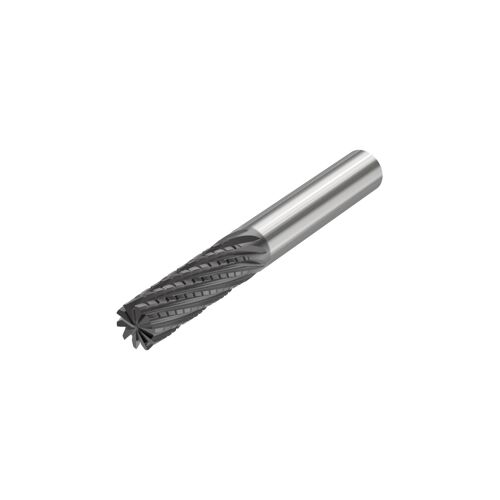

| Označení | Produktové označení | JC875080D2.0-DURA |
| Označení Ansi | Označení produktu ANSI | JC875080D2.0-DURA |
| DMM | Průměr stopky / otvoru pro trn | 8.0 mm |
| FHA | Flute Helix Angle | 20.0 deg |
| FHH | flute helix hand | RIGHT |
| GAMF | rake angle radial | 6.0 deg |
| GAMP | Axiální úhel čela | 20.0 deg |
| Gradetype | Gradetype | Carbide-DURA |
| HAND | Směr řezu | RIGHT |
| ICC | internal coolant channel | No |
| ISYC | item style code | 303-02 |
| Produktové číslo | Číslo položky | 02968159 |
| KAPR | Úhel nastavení ostří nástroje | 90.0 deg |
| KAPRE | tool cutting edge angle in feed direction end | 91.0 deg |
| KAPRS | tool cutting edge angle in feed direction side | 90.0 deg |
| KCH | corner chamfer angle | 45.0 deg |
| L | Teoretická délka břitu | 24.0 mm |
| LE | cutting edge effective length | 24.0 mm |
| LSCN | clamping length minimum | 36.0 mm |
| LVCatalogue | length variant cataloque | 2 |
| MATERIAL | cutting item material type | CARBIDE |
| NOF | flute count | 10 |
| OAL | Celková délka | 70.0 mm |
| PCEDC | Pheripheral cutting edge count | 10 |
| PSIR | tool lead angle | 0.0 deg |
| RMPX | ramping angle maximum | 0.0 deg |
| RNA | runout axial | 0.02 mm |
| RNR | runout radial | 0.02 mm |
| Druh stopky | Shanktype | Válcová |
| TSCAT | toolshape catalogue | D |
| Weight | Net weight | 0.0496 kg |
| ZEFP | Počet efektivních periferních břitů | 10 |
| ZNP | Peripheral edges in the tool | 10 |
| Výrobce | SECO |
